Fixtures/Guides for Laser Engraver Alignment, Hobby laser or other 6mm slots spaced 50mm apart grids

This set of fixtures for your laser will enable you to quickly and consistently line up your engraving subjects.
These fixtures rely on a grid of 50mm spaced M6 screw holes to securely place your subjects on the bed of your laser. Bolts do fit in-between the main holes, allowing you to do some creative things with angles if needed.

These are 3D printed in-house with high density out of PLA. They are strong, but will be damaged by lasers, avoid 'engraving' on (or through) the guides! :)

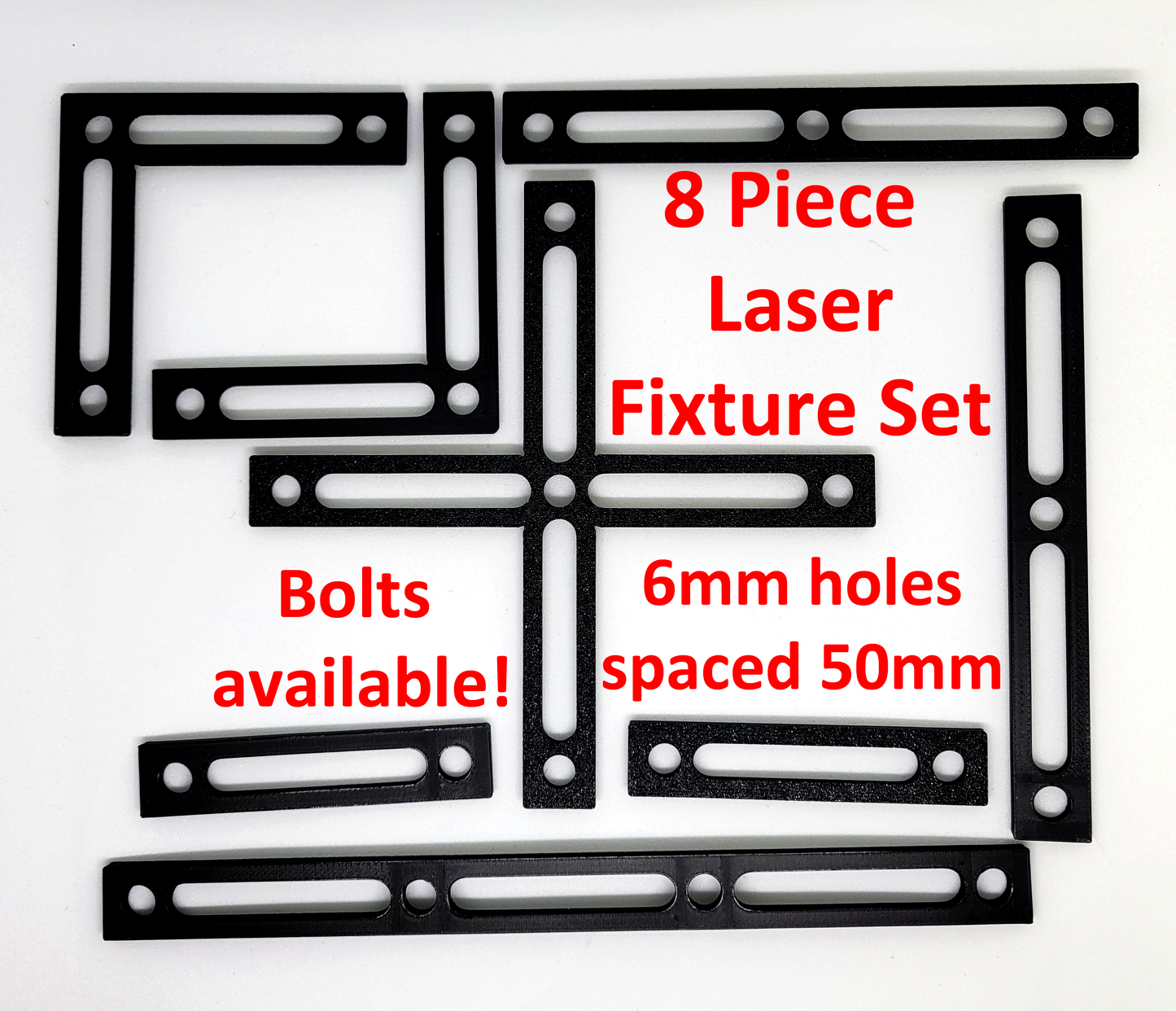

Each 8-piece set includes:

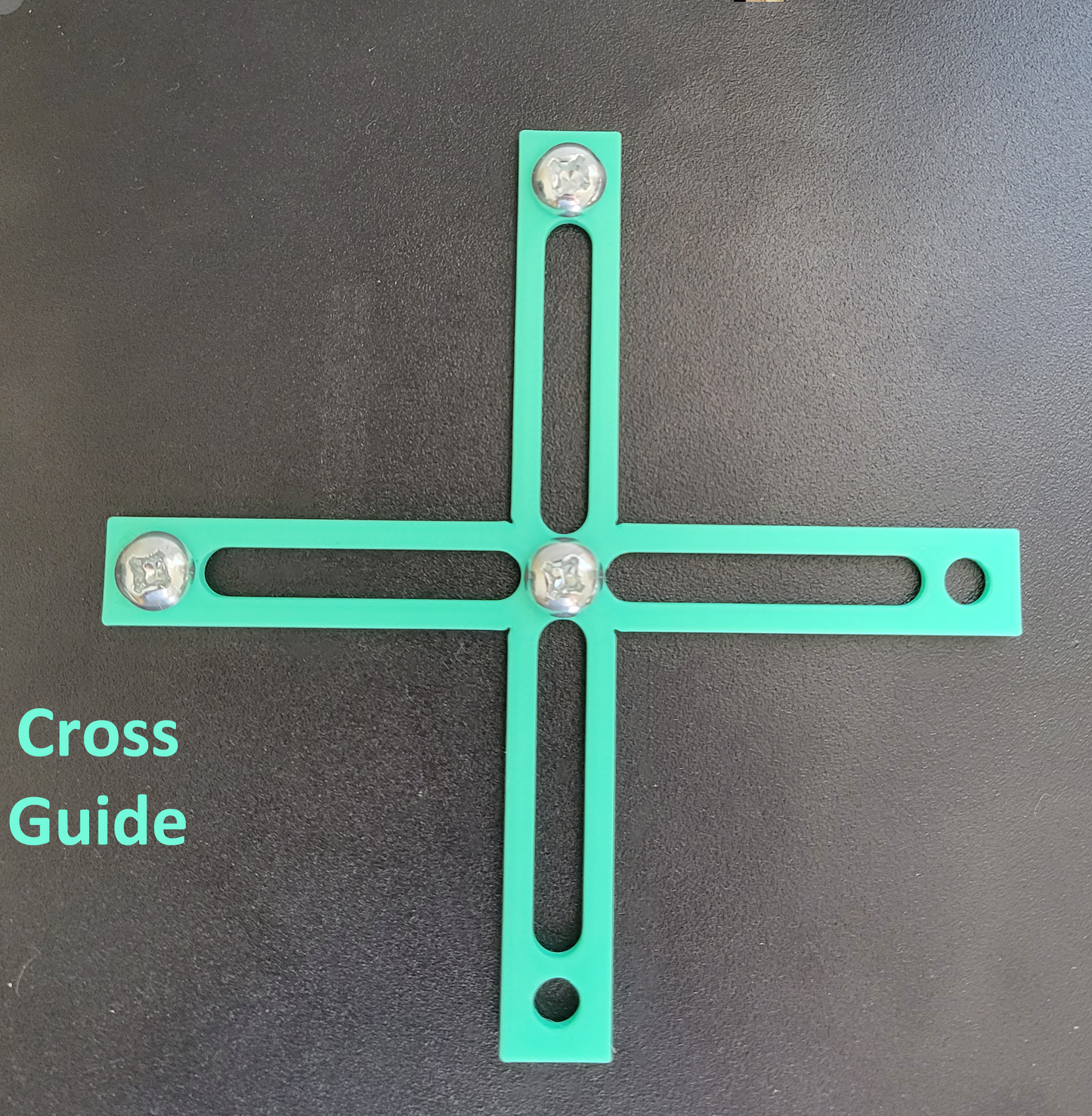

1 x Cross Guide (113mm x 113mm x 3mm)

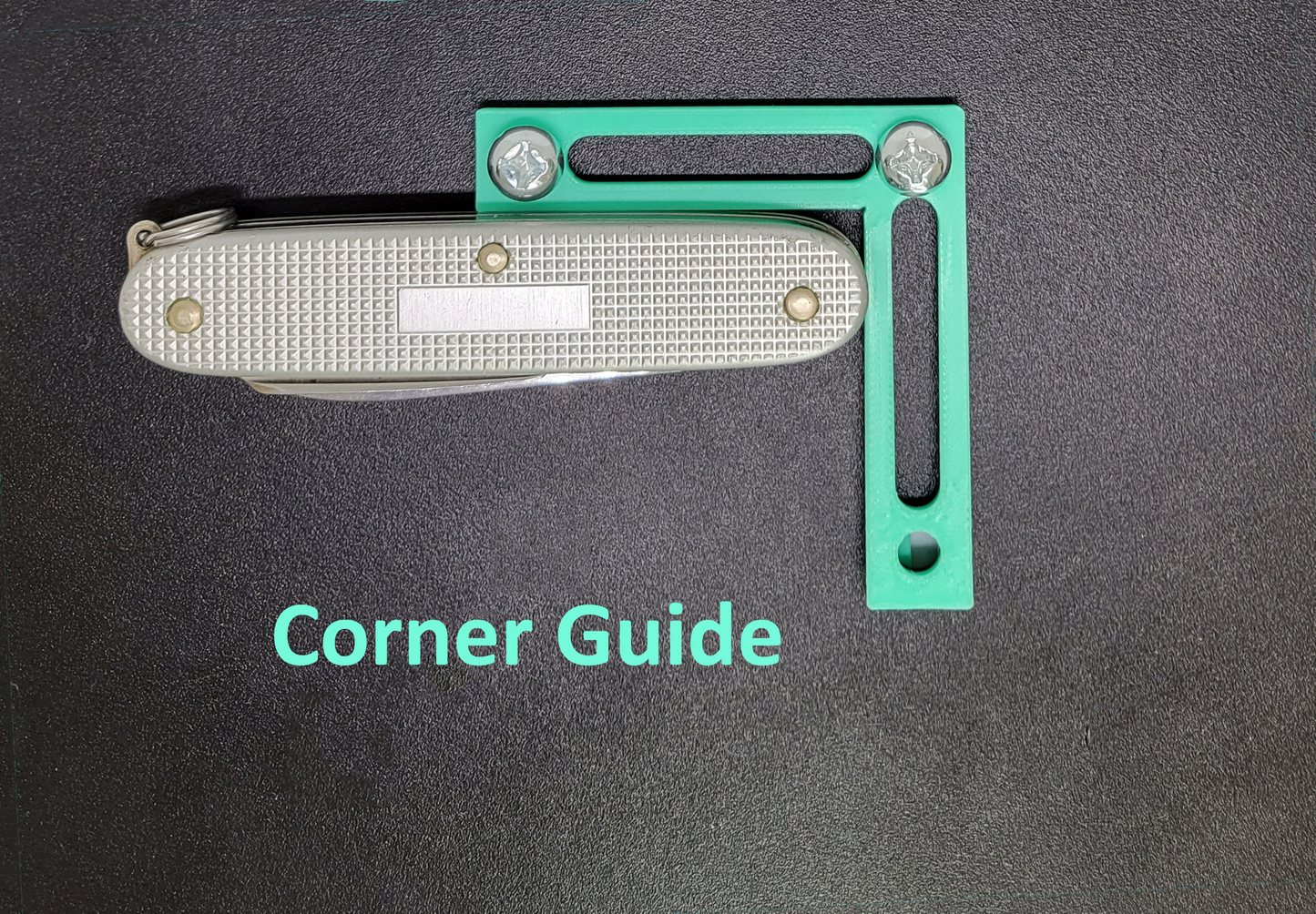

2 x Corner Guides (63mm x 63mm x 3mm)

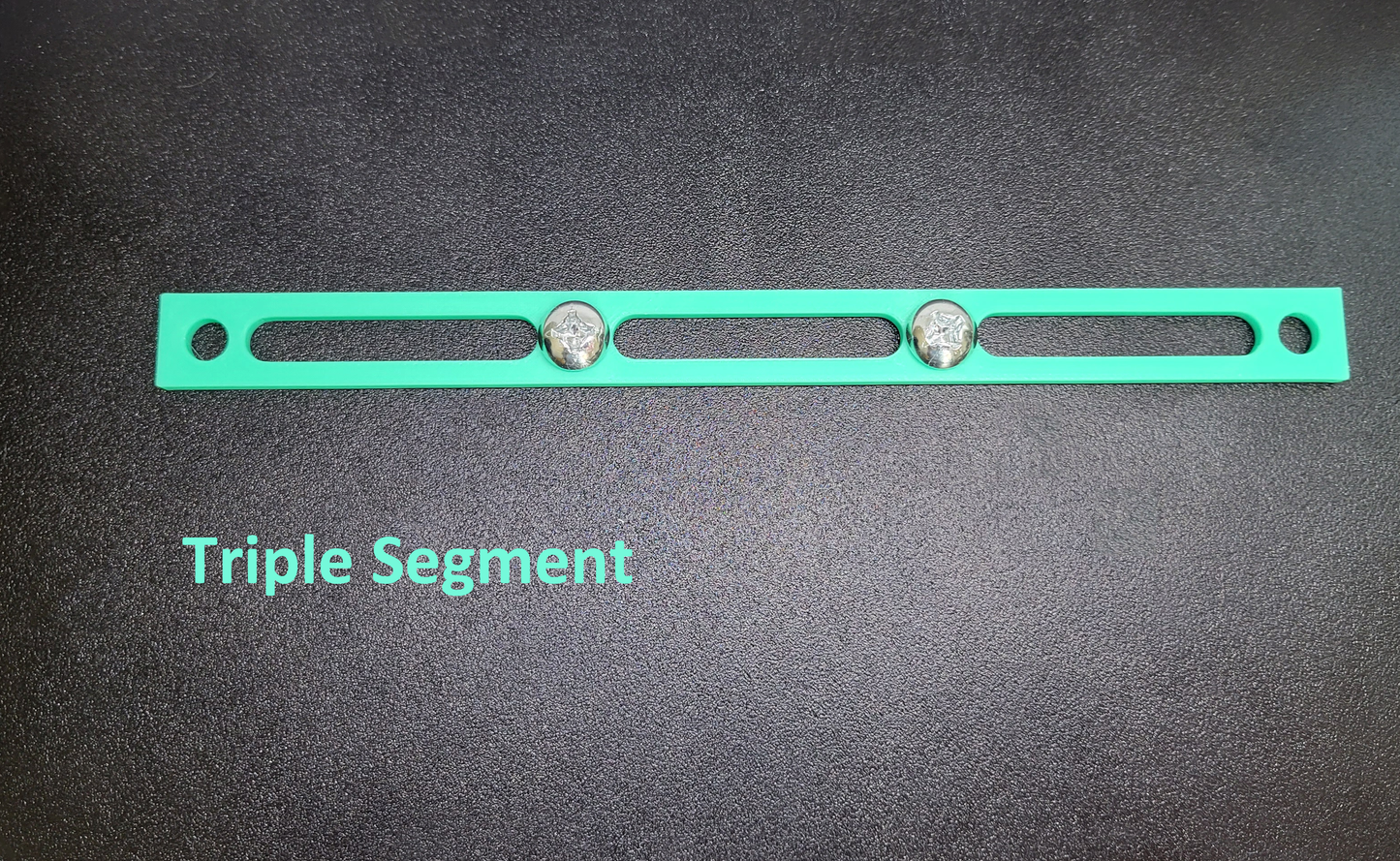

1 x Triple Segment Guide (163mm x 13mm x 3mm)

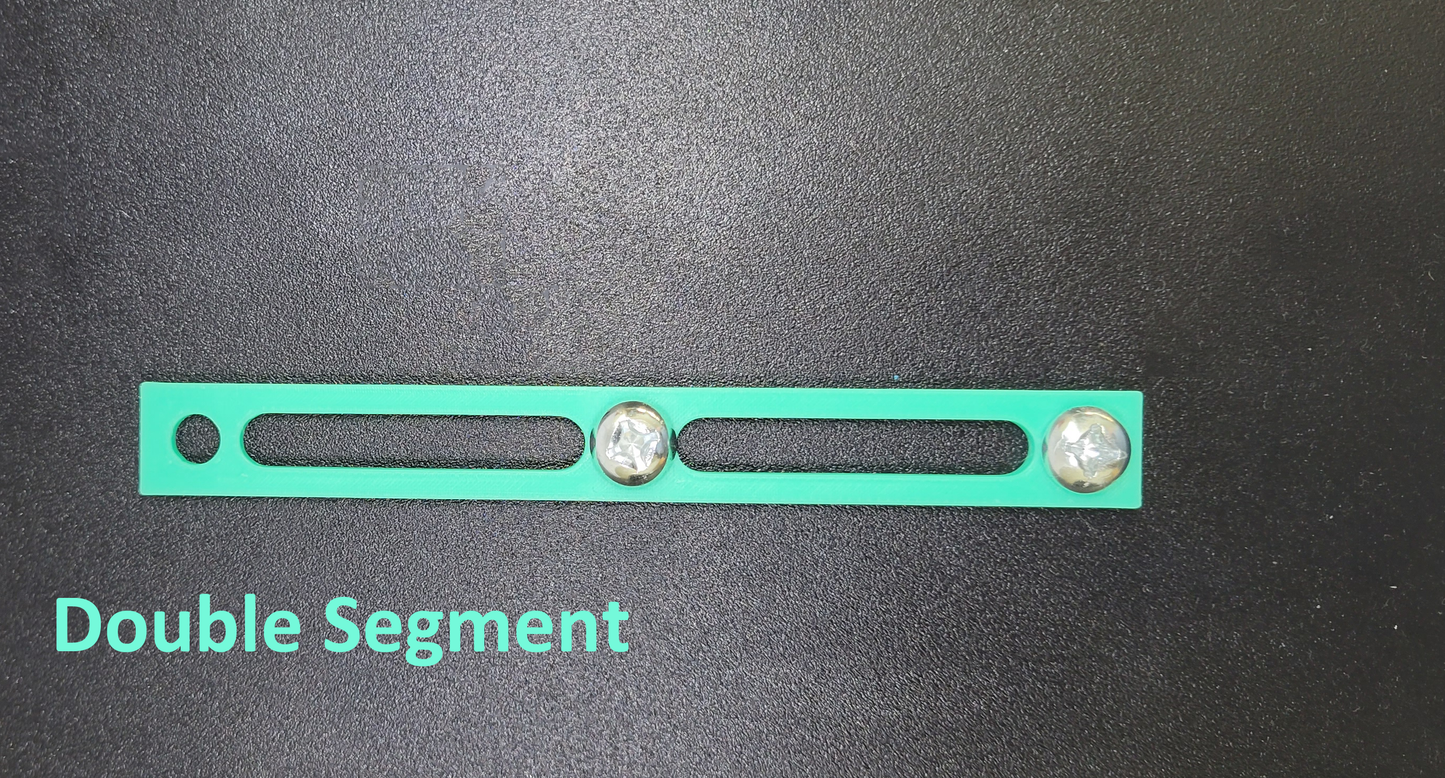

2 x Double Segment Guide (113mm x 13mm x 3mm)
2 x Single Segment Guide (63mm x 13mm x 3mm)


Bolts/Screws are ONLY included if selected in the 'Bolts' dropdown.
Orders purchased with the bolts option will receive a set of Cross-Head M6x10mm Machine Screws.



Model is used under the Creative Commons Attribution License (Which allows for commercial sale)
Created by cncpadawan:
https://www.thingiverse.com/thing:4547371
